PP-1U 2D96 MPO Patch Panel
Property Description
Type: MPO-LC
Fibre Count: 96F
Fibre Type: SM
Connector Type: Fan Out Cable
Application: Data Centre / Telecom / High-Density Cabling
PP-1U 2D96F MPO Patch Panel
| Type | CA-12F | |
| Size (mm) | 143*93*11 | |
| Material | PC+ABS UL V0 | |
| Capacity | 12f LC | |
| Type | PP-1U 2D96F | |
| Size (mm) | W482*D436*H44 | |
| Material | Cold Rolled Steel | |
| Weight | 3 kgs | |
| Capacity | 96f LC (8*cassettes) |
Description:
MPO/MTP Cassette Module possess optical fiber branching patch cords inside to split the 12-core
MPO / MTP connector into simplex connector. Simplex or duplex connectors are placed in front of the modules, and one or two MPO/ MTP connectors are placed at the back of the modules.The branching patch cord connect the front LC and the rear MPO/MTP connectors. This type of modules can be easily installed in 1U and 4U Chassis
Features:
Factory pre-termination, 100% tested to ensure the transmission performance
Modular design, easy for expansion
Reasonable of optical fiber cable route
Minimize structure and ensure fiber bending radius not less than 30mm
Rapid configuration, reduce installation time
Rapid upgrading, support parallel transmission
Application:
Data center, Network room
Complied Standards :
Comply with TIA/EIA 604-5, IEC 61754 series standards.

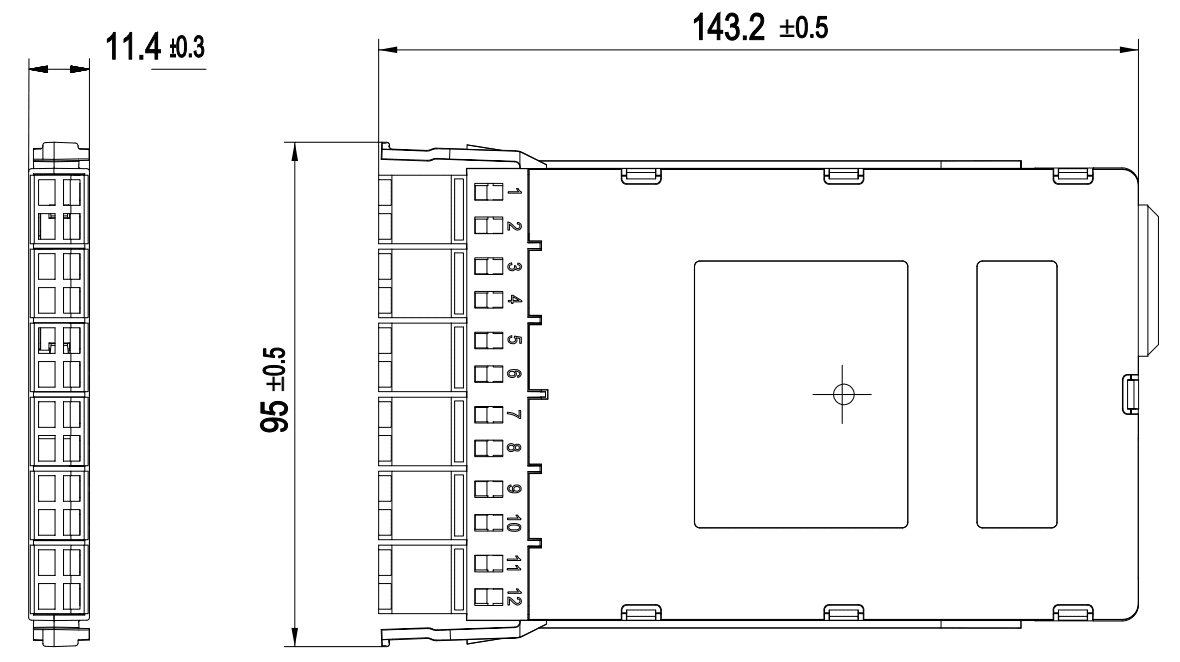

Drawing:
