FoCON-MPMC-01 MPO Patch Panel
Property Description
Type: MPO Patch Panel
Fibre Count: 12F
Fibre Type: SM
Connector Type: Fan Out Cable
FoCON-MPMC-01MPO Patch panel
Description:

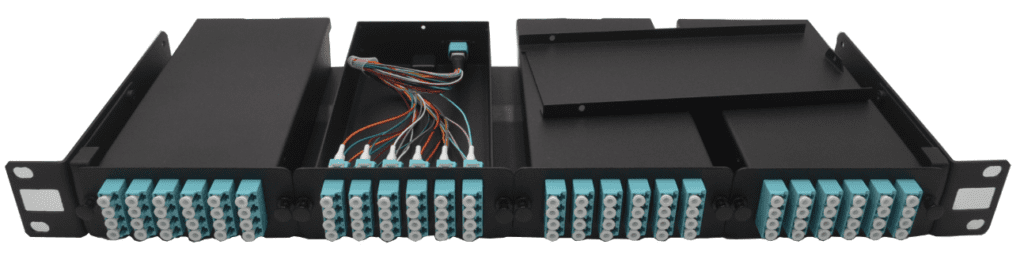

This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features:
Made by cold roll steel, electrostatic powder spraying.
Fixed type, without cover, convenient for observation and maintenance.
It is simple and light,convenient for air shipment.

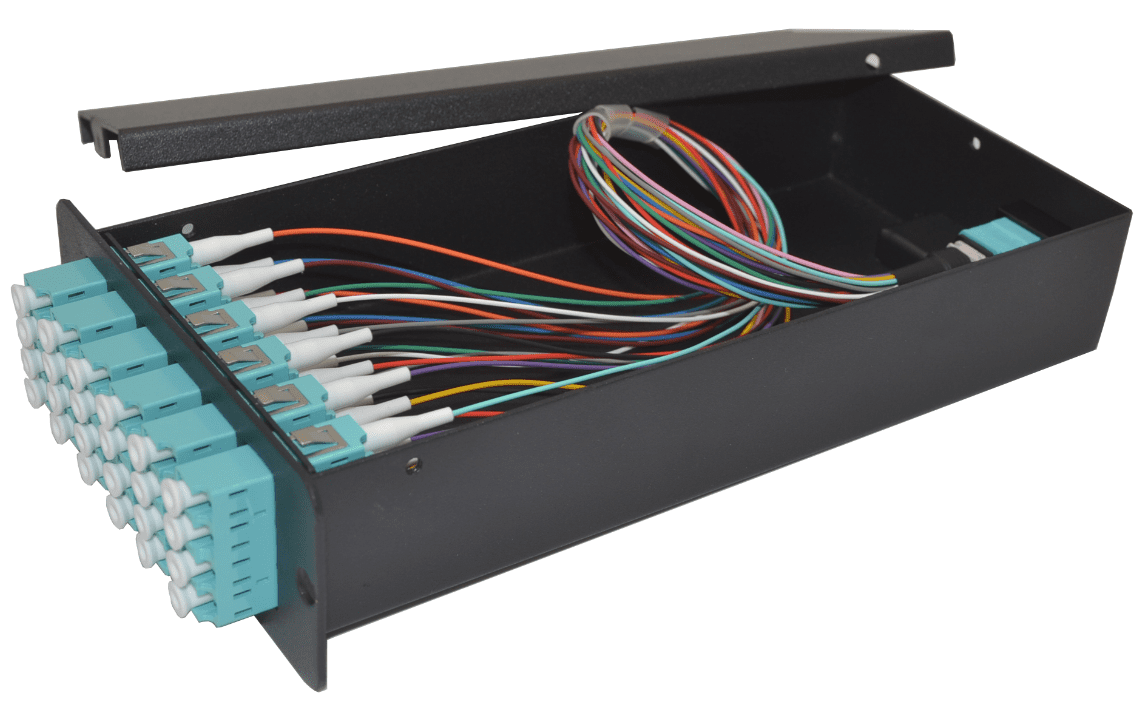

Load max. 4pcs MTP/MPO cassettes.
Each MTP/MPO cassette can load 6pcs LC quad adapter & 1 or 2pcs MTP/MPO adapter, max. 24fibers.
Application:
Data center, Network room
Specification:
| Model | Dimension | Material | MPO box | Capacity | Application |
| FoCON-MPMC-01 | 482x300x44.3mm | Cold roll steel | 4 pcs | 96 fibers | Fixed mounted type |
Drawing:
