96F MPO Trunk Cable 6.0mm

MTP/MPO trunk cabling connects MTP/MPO modules together as a permanent link. They facilitate rapid deployment of high-density backbone cabling in data centers and other high-density fiber environments, reducing network installation or reconfiguration time and cost. Its efficient plug-and-play structure greatly reduces the initial installation and routine maintenance costs. Pre-terminated trunk cables can also be used with plug-and-play modules or MTP/MPO connector panels to achieve multi-level connection. Pre-terminated trunk cable can also be extended by MTP/MPO panel with the plug-and-play module. They are used to interconnect module cassettes,  panels or ruggedized MTP/MPO fanouts, spanning MDA, HDA and EDA zones.

Application:

● Data Center Interconnect

● High-Density Fiber Management

● Telecommunication Networks and CATV networks

● LAN/WAN Premises

Complied Standards

Comply with IEC 61754-7， TIA/EIA 604-5, Telcodia GR-1435-CORE Issue 2 standards.

Fire resistance comply with low smoking (IEC 61034), halogen free (IEC 60754-1), flame retardant (IEC 60332-1-2), and corrosion proof (IEC 60754-2)

General Specification

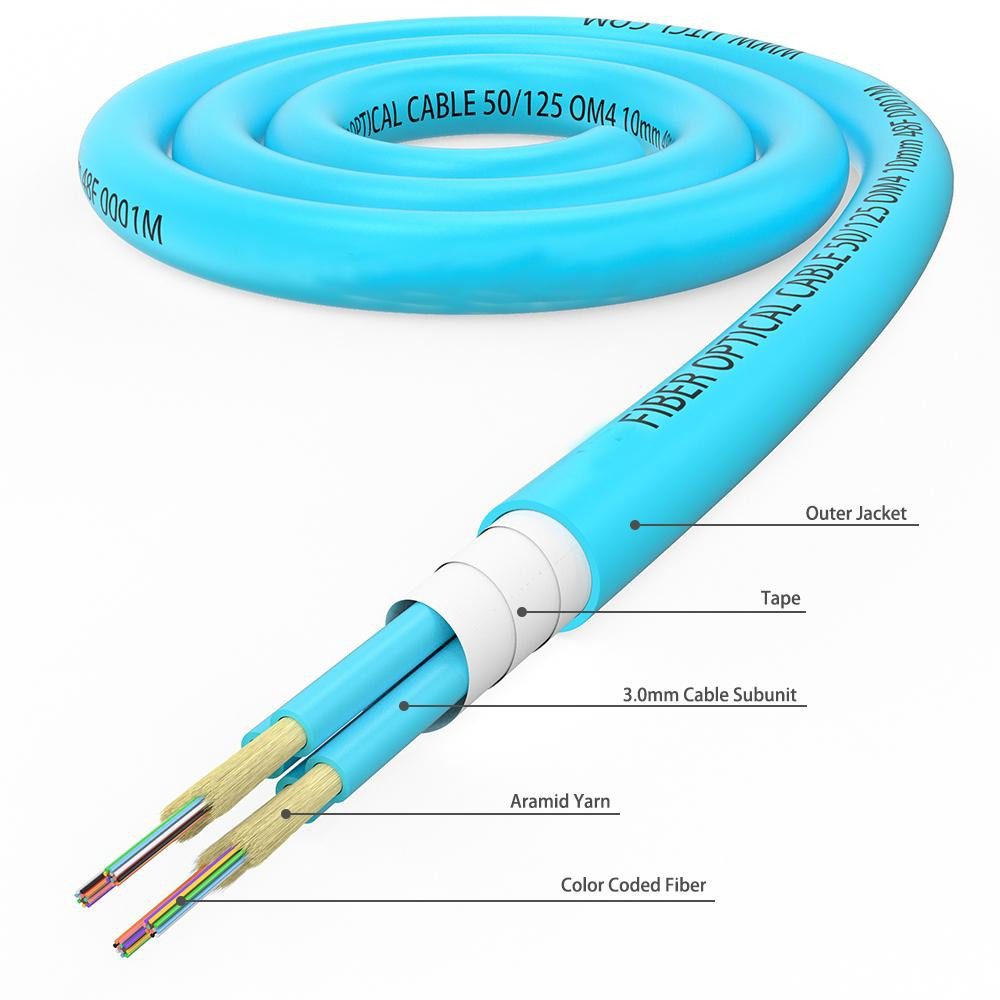

96F Mini Distribution Cable

Application

* Used in indoor cabling;

* Used as access building cable;

* Used as interconnect lines of equipments, and used in

optical connections in optical communication rooms.

* Used in pigtails and patch cords.

Features

* Good mechanical and environmental characteristics;

* Flame retardant characteristics meet the requirements of relevant standards;

* The mechanical characteristics of jacket meet the requirements of relevant standards;

* Soft, flexible, easy to lay and splice, and with big capacity data transmission;

* Meet various requirements of market and clients.

Fiber Characteristic：

 Cable Parameters
